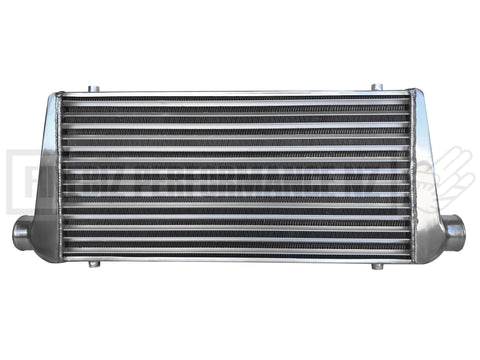

600 X 300 X 76 INTERCOOLER
pressure tested to 80psi
Compressed air flow rate:572CFM/300HP and 858CFM/500HP
Pressure Drop: 1.5- 2.5psi @ 35psi and 0.1-0.3psi @ 15psi
Hot Air Temp: 0 to150C
Universal upper and lower mounting holes, 2.5" inlet and 2.5" outlet.
The core size is 600x300x76mm
Overall size: 785 x 310 x 80mm
785mm overall length (inlet to outlet)
