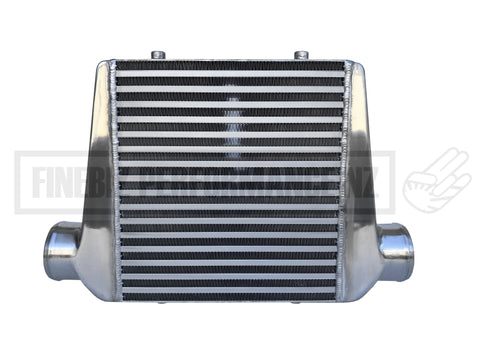

280x300x76 INTERCOOLER
pressure tested to 80psi
Compressed air flow rate:572CFM/300HP and 858CFM/500HP
Pressure Drop: 0.2psi @ 15psi and 1.5psi @ 35psi
Hot Air Temp: 0 to150C
Universal upper and lower mounting holes, 3" inlet and 3" outlet.
The core size is 280*300*76 mm
Overall size: 465mm x 300mm x 76mm
pressure tested to 80psi
Compressed air flow rate:572CFM/300HP and 858CFM/500HP
Pressure Drop: 0.2psi @ 15psi and 1.5psi @ 35psi
Hot Air Temp: 0 to150C
Universal upper and lower mounting holes, 3" inlet and 3" outlet.
The core size is 280*300*76 mm
Overall size: 465mm x 300mm x 76mm
