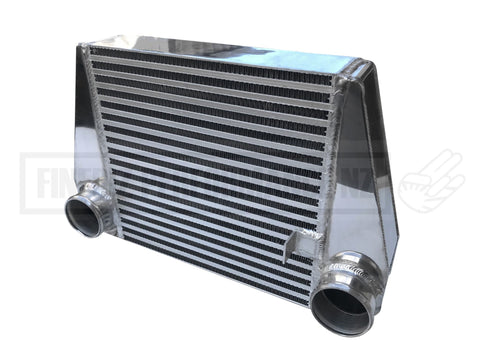

320mm x300mm x 80mm thick Intercooler
Good size for rotary motors.
pressure tested to 80psi
Compressed air flow rate:572CFM/300HP and 858CFM/500HP
Pressure Drop: 0.2psi @ 15psi and 1.5psi @ 35psi
Hot Air Temp: 0 to150C
2.75" inlet and outlet (= 70mm)
The core size is 320*300*80 mm
Overall size: 475mm wide x 300mm high x 79mm thick.
Centre to centre of inlet/outlet is 395mm.
Some of our products are designed exclusively for off-road and track racing only. It is a buyer's responsibility to check the laws.
