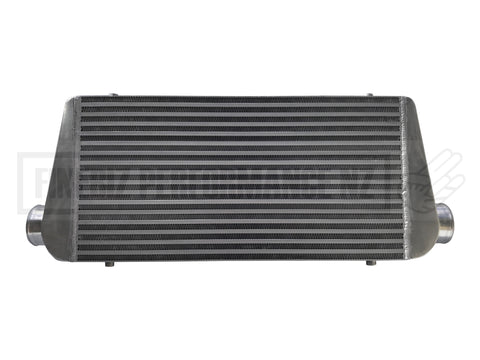

Intercooler 600 x 300 x 76 - BAR AND PLATE (3"inlet and outlet)

600 X 300 X 76 INTERCOOLER - BAR AND PLATE

pressure tested to 80psi

Compressed air flow rate:572CFM/300HP and 858CFM/500HP

Pressure Drop: 1.5- 2.5psi @ 35psi and 0.1-0.3psi @ 15psi

Hot Air Temp: 0 to150C

Universal upper and lower mounting holes, 3" inlet and 3" outlet.

The core size is 600x300x76mm

Overall size: 785 x 310 x 80mm

3" inlet/oulet and 785mm overall length (inlet to outlet)
